125cc Kids / Youth Automatic w-Reverse 7 INCH TIRES for smaller riders with throttle limiter

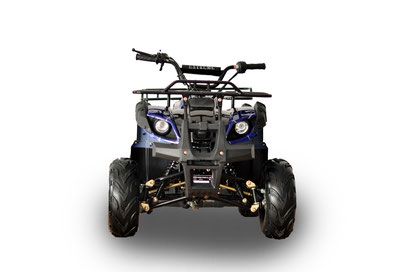

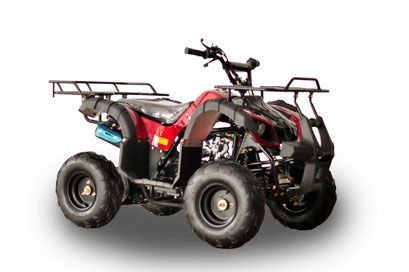

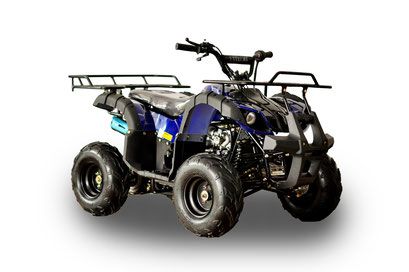

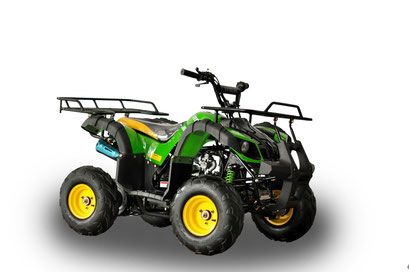

125 CC Kids / Youth 4 wheeler with 7 in rims and smaller tires. This unit is the same as the bigger 125cc units, but has the smaller tires and rims from the 110cc model. This unit comes with a throttle limiter, remote shut down, working head and tail / brake light. These units are built very well and are very powerful. Comes with a 6 month warranty on the power train. Please see the 4 wheelers specifications below.
SPECIFICIATIONS
MODEL: |
3125 XR8-C: 7 inch rims with 16 inch tires, 125cc engine |
| |
Colors available: |
PINK CAMO, ARMY GREEN CAMO, BLUE, RED, BLACK, Black Camo |
Decals |
No |
Tool kit |
Yes |
Remote start |
Yes |
Remote engine stop |
Yes |
Remote alarm |
NO |
Speed limiter |
Yes |
Assembly required |
Yes, if not picked up from out location in Longwood Florida. |
|
ENGINE INFO. | |
Engine type |
Four Stroke ,single cylinder, |
Engine brand |
Tianzong |
Displacement |
125 cc |
Cooling |
Air cooled |
Max horsepower |
5.2kW/8000(r/min)； |
Max torque |
7.0N.m/5000(r/min) |
Bore*stroke |
52.4×49.5 mm |
Max speed |
55km/h |
Climbing ability |
≥11° |
Ignition |
C.D.I |
Starting system |
Electric start |
Battery |
12V 4AH |
Carburetor brand |
Pz19 |
Engine oil |
10W/40-SE |
Gear oil |
* |
CHASSIS ETC. | |
Clutch |
automatic |
Transmission |
1-forward,1-neutral,1-reverse |
Driveline |
Chain drive |
Driving wheel |
Rear tires Live Axel |
Suspension,front/rear |
FR：DOUBLE / RR：SINGLE |
Brakes,front/rear |
FR:DRUM RR:DISC |
Brake operation |
HAND+foot |
Tires; Front/Rear |
16 x 8.0-7 / 16 x 8.0-7 |
Fuel capacity/type |
2.3L |
Weight,G.W./N.W. |
* |
Max load |
90kg |
|
DIMENSIONS | |
Wheelbase |
890 mm |
OA L*W*H |
1340×850×950 mm |
Height to seat |
680mm |
Min ground clearance |
100mm |
Carton size |
1310×760×650mm |
