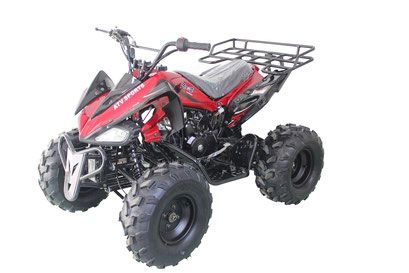

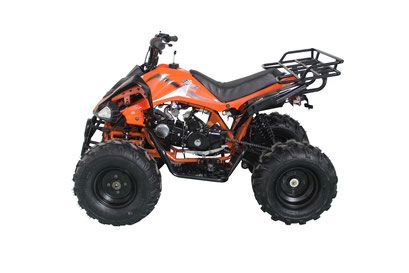

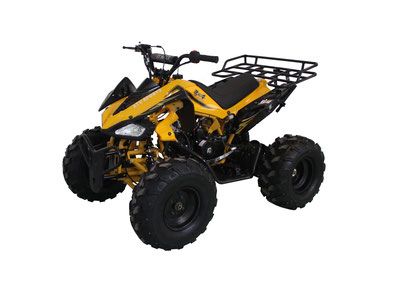

125cc SPORT ATV Wheeler with Footshifter Automatic F-N-R Just Shift
125cc Kids / Youth ATV with 3 speed foot shifter-Reverse and a automatic clutch. The units come with a throttle limiter, remote shut down and have many different color arrangements. They have a 6 month warranty on the power train. The unit will be delivered to your location FREE of charge and are about 85% assembled, you just have to assemble the rest. Handle bars, battery, wheels, racks, rear shock, gas and a few minor items. SOME MECHANICAL KNOWLEDGE IS REQUIRED TO ASSEMBLE.
SPECIFICATIONS
Model No: |
Sport 125cc 3125CX-2 |
Colors available: |
RED, BLUE, BLACK, ORANGE, GREEN, Yellow, Pink, |
|
|
ENGINE INFO |
|
Engine Type: |
4-stroke ,single cylinder, OHC |
|
|
Cooling: |
Air cooled |
Max speed: |
38. mile/h |
Ignition: |
C.D.I |
Starting system: |
Electric |
Battery: |
12V/5Ah |
Engine oil: |
SAE10W/30 |
Gear oil: |
None |
Clutch: |
SEMI-AUTO |
Transmission: |
Forward / neutral / Reverse |
Driveline: |
Chain-drive |
Driving wheel: |
Rear wheel drive |
|
Brakes Front/Rear: |
Drum/Disc |
Brake operation: |
Grip brake / foot |
|
Tires Front/Rear: |
19*7-8 18*9.5-8 |
Fuel capacity: |
2.1gal |
|
WEIGHT |
|
|
N.W./G.W. Max Load: |
264.5/319.7 LBS. 143.3 LBS. |
Wheelbase: |
44.1 inches |
OA L*W*H: |
66.9*45.3*43.3 inches |
Height to seat: |
37.4 inches |
Min ground clearance: |
32 inches |
Carton size: |
55.5*34*30.3inches |
