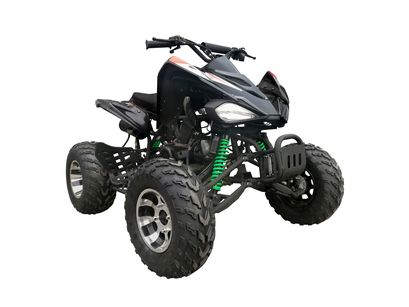

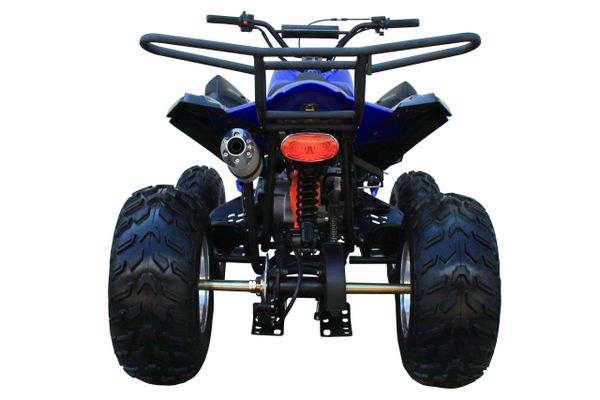

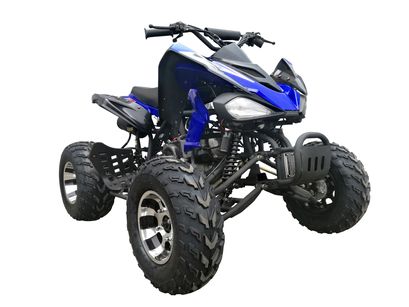

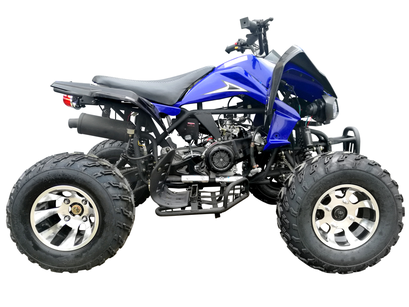

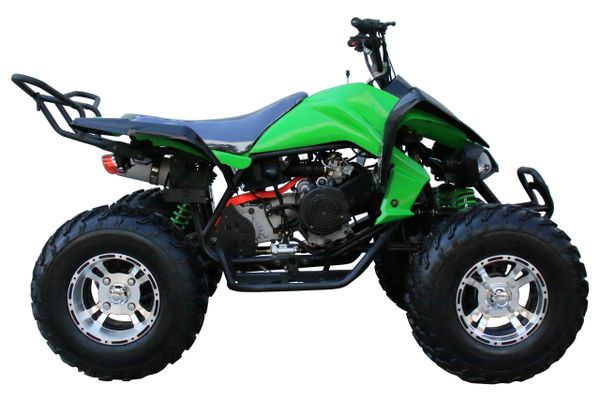

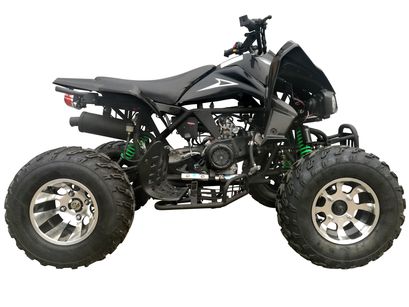

150CC kids / Young adult ATV.
!50cc automatic CVT transmission with reverse, throttle limiter and working head and tail light. The 4 wheeler comes with a 6 month warranty on the power train. Please see the 4 wheeler specifications below:
SPECIFICATIONS
ENGINE INFO
MODEL NO. COUGAR 150 SPORT (150cc)
Engine type |
150CC,4 STROKE，AIR COOLED，SINGLE CYLINDER, CVT CLUTCH） |
Displacement |
150CC |
Cooling |
AIR COOLED |
Max horsepower |
5.5kW/7000(r/min) |
Max torque |
10.5N•m/6000(r/min) |
Bore*stroke |
57.4X57.8 (mm) |
Max speed |
55㎞/h |
Climbing ability |
35 |
Ignition |
C.D.I |
Starting system |
ELECTRIC+FOOT |
Battery |
12V9Ah |
Carburetor brand |
KF（PZ30BL） |
Engine oil |
SAE-10W/40 |
Gear oil |
None |
CHASSIS ETC. |
|
Clutch |
CVT Automatic |
Transmission |
1-forward,1-neutral,1-reverse |
Driveline |
CHAIN |
Brakes,front/rear |
FRONT DRUM/REAR DISC |
Brake operation |
FRONT:HANDLE/REAR:FOOT |
Tires,front/rear |
19X7.0-10/18X9.50-10 |
Max load |
330 LBS |
DIMENSIONS |
|
Wheelbase |
1150mm |
OA L*W*H |
1679X998X1094mm |
Height to seat |
830mm |
Min ground clearance |
110mm |
|
