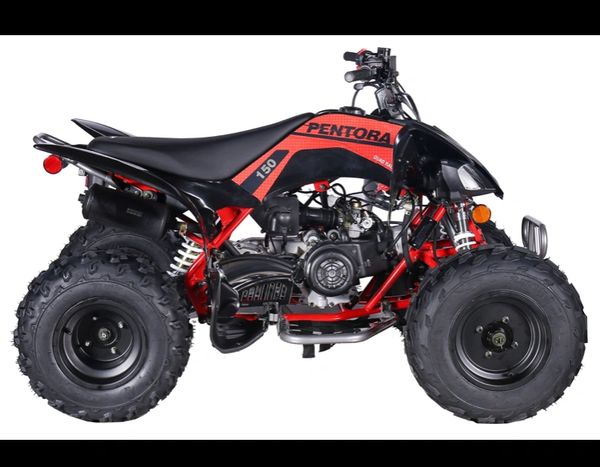

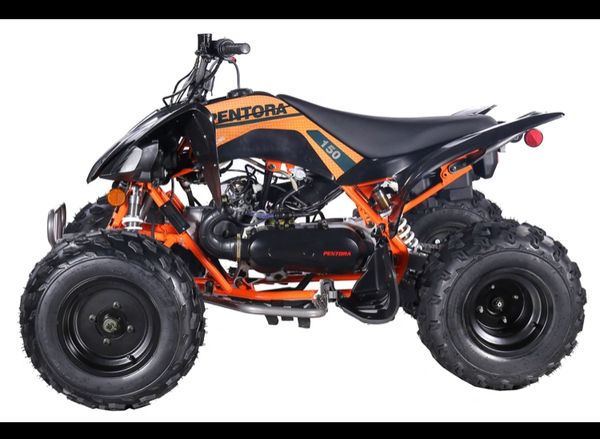

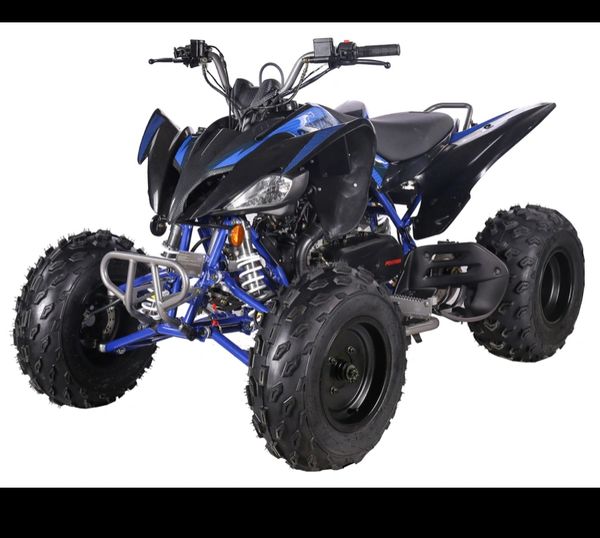

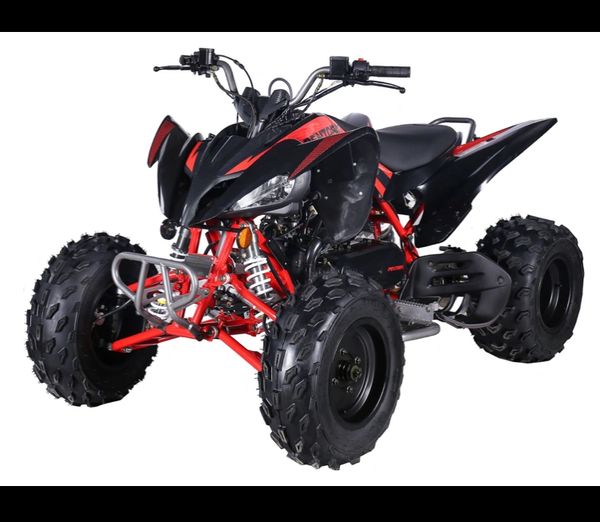

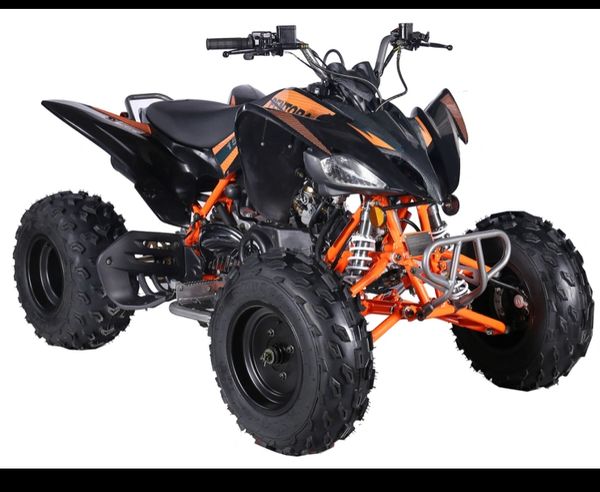

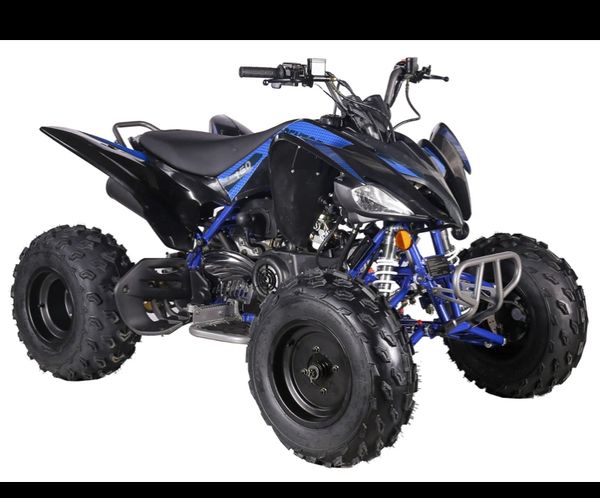

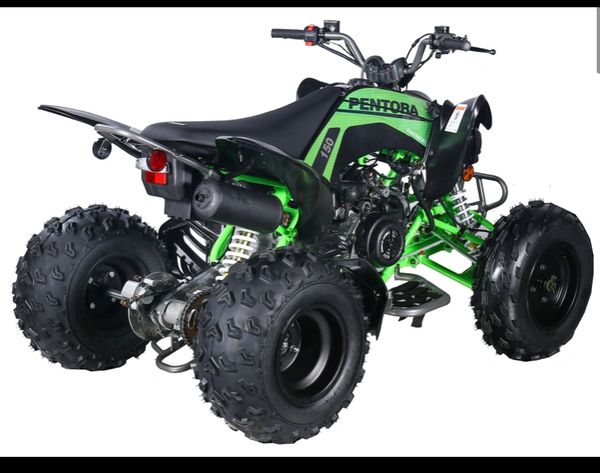

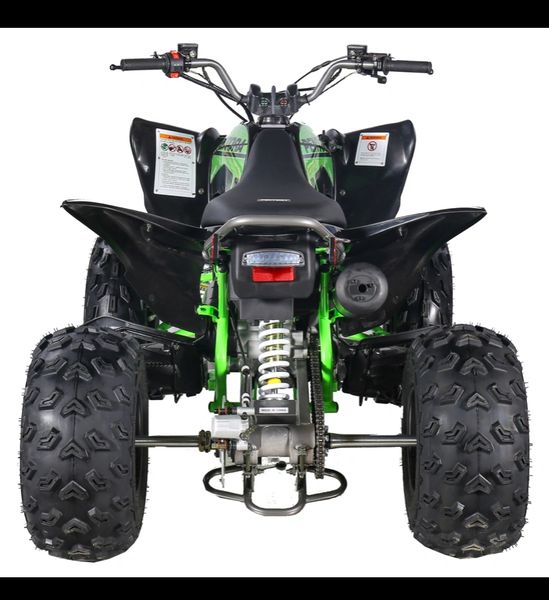

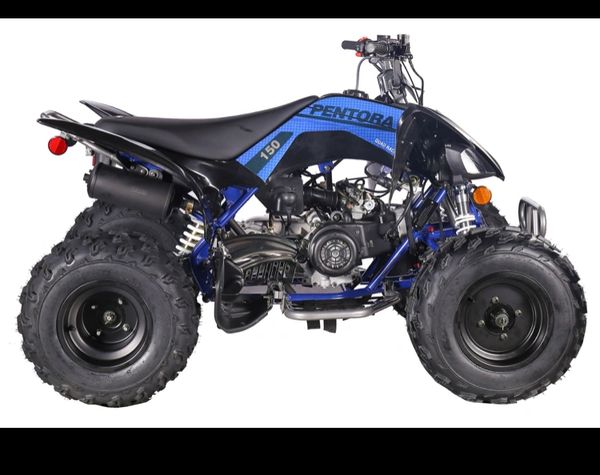

150cc Pentora
150cc Pentora is great for pre teens and adults, Fully Automatic. Comes with a six month warranty on the power train.
Y55-Y150EPA- PENTORA 150
NO. |
SPEC |
ITEMS |
DETAIL |
1. |
ATV SPEC |
L×W×H |
63.9”* 41.7”* 41.9” |
2. |
WHEELBASE |
43.7”±0.7” |
|
3. |
FRONT WHEELBASE |
32.2” |
|
4. |
REAR WHEELBASE |
31.8” |
|
5. |
MINIMUM GROUND CLEARANCE |
5.1”±0.5” |
|
6. |
SEAT HEIGHT |
31.1”±0.59” |
|
7. |
RIDE HEIGHT |
8.8” |
|
8. |
HANDLE HEIGHT |
39.3” |
|
9. |
PACKING SIZE |
57.4”* 34.6”* 33.8” 62/40H |
|
10. |
FR. SUSPENSION TRAVEL |
2.7” |
|
11. |
RR. SUSPENSION TRAVEL |
3.1” |
|
12. |
232.2”± 19.6” |
||
13. |
TURNING ANGLE |
<45° |
|
14. |
SIDESLIP |
<5m/km |
|
15. |
MAX LOADING |
220 LBS |
|
16. |
NET WEIGHT |
315 LBS |
|
17. |
G. W. |
374 LBS |
|
18. |
F&R BRAKE |
||
19. |
F&R BRAKE OPERATION TYPE |
FR. & RE. HAND BREAK |
|
20. |
FR./RR. RIM |
10*5.5AT/9*8.0AT |
|
21. |
FR./RR. TYRE |
AT20*7.0-10/AT19*10-9 |
|
22. |
FR./RR. TYRE CAPACITY |
9PSI |
|
23. |
TRANSMISSION |
CHAIN |
|
24. |
ENGINE SPEC |
ENGINE TYPE |
SINGLE CYCLINDER, AIR COOLER, 4 STROKE |
25. |
MODEL NO. |
157QMJ-B2 |
|
26. |
MANUFACTORY |
WANG YE BRAND |
|
27. |
BRORE×STROKE |
57.4 ㎜*57.8 ㎜ |
|
28. |
ENGINE CAPACITY |
149.6 ml |
|
29. |
COMPRESSION RATIO |
9.5:1 |
|
30. |
MAX.POWER |
7.3 kW/7000 r/min |
|
31. |
RATED POWER |
8 kW/8000 r/min |
|
32. |
MAX.TORQUE |
10.1 N·m/6000 r/min |
|
33. |
BATTERY |
12V，7HA |
|
34. |
|
TOP SPPED |
70km/h |
35. |
|
TANK CAPACITY |
9L` |
36. |
FR./RR. SUSPENSION |
OIL DAMPER |
|
37. |
FR./RR. SUSPENSION LENGTH |
L=350 m m /L=360 m m
|
